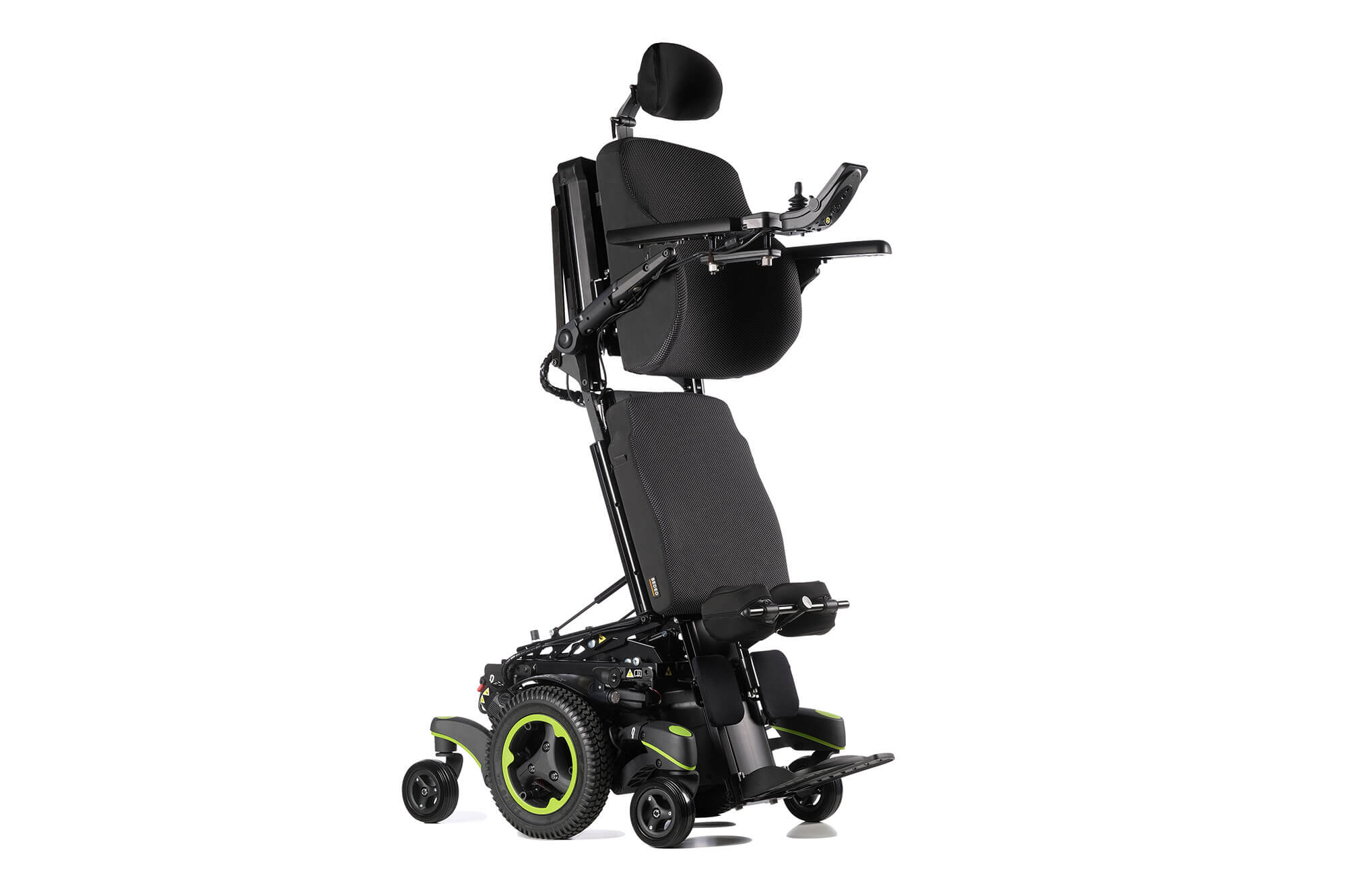

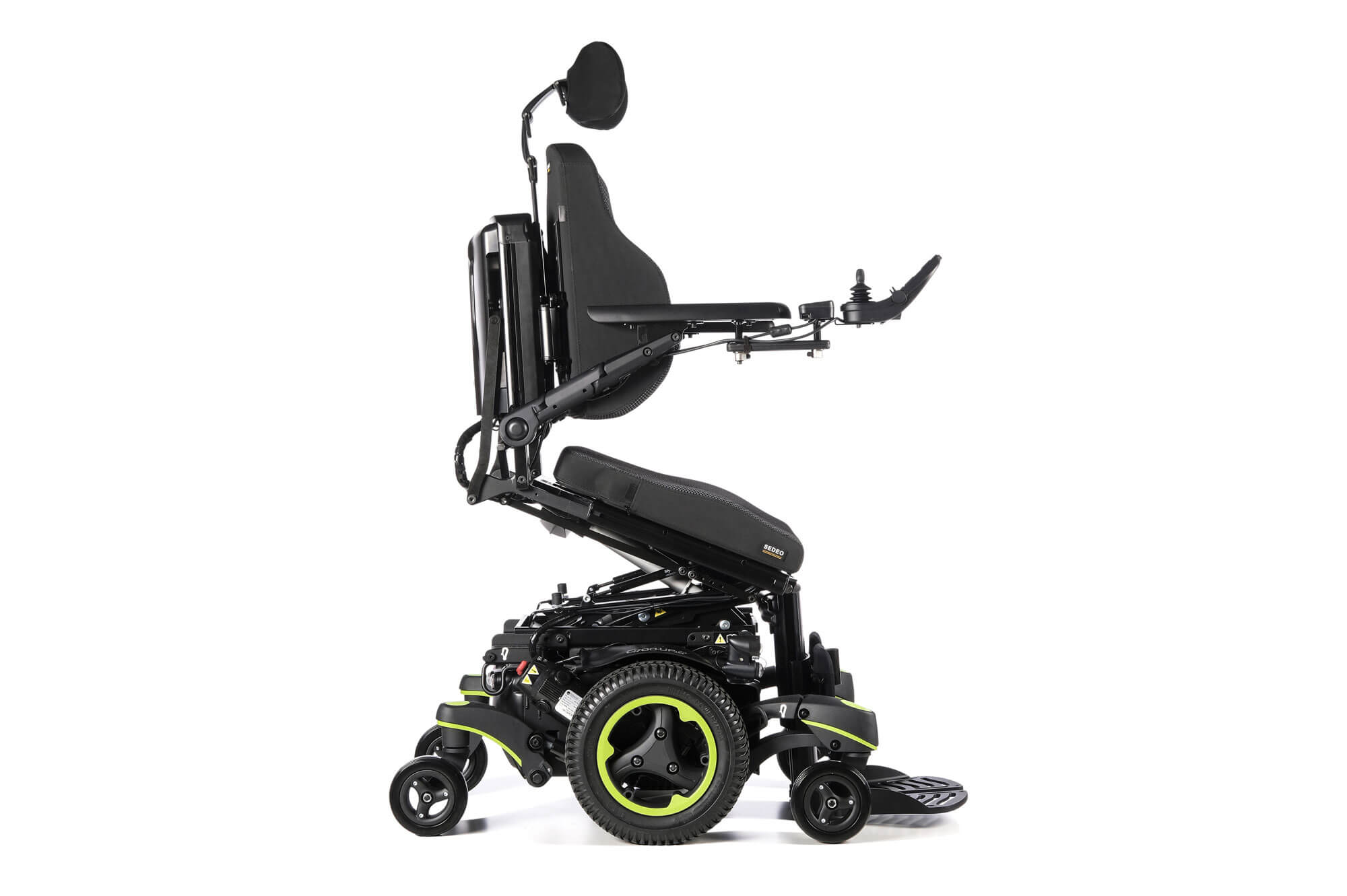

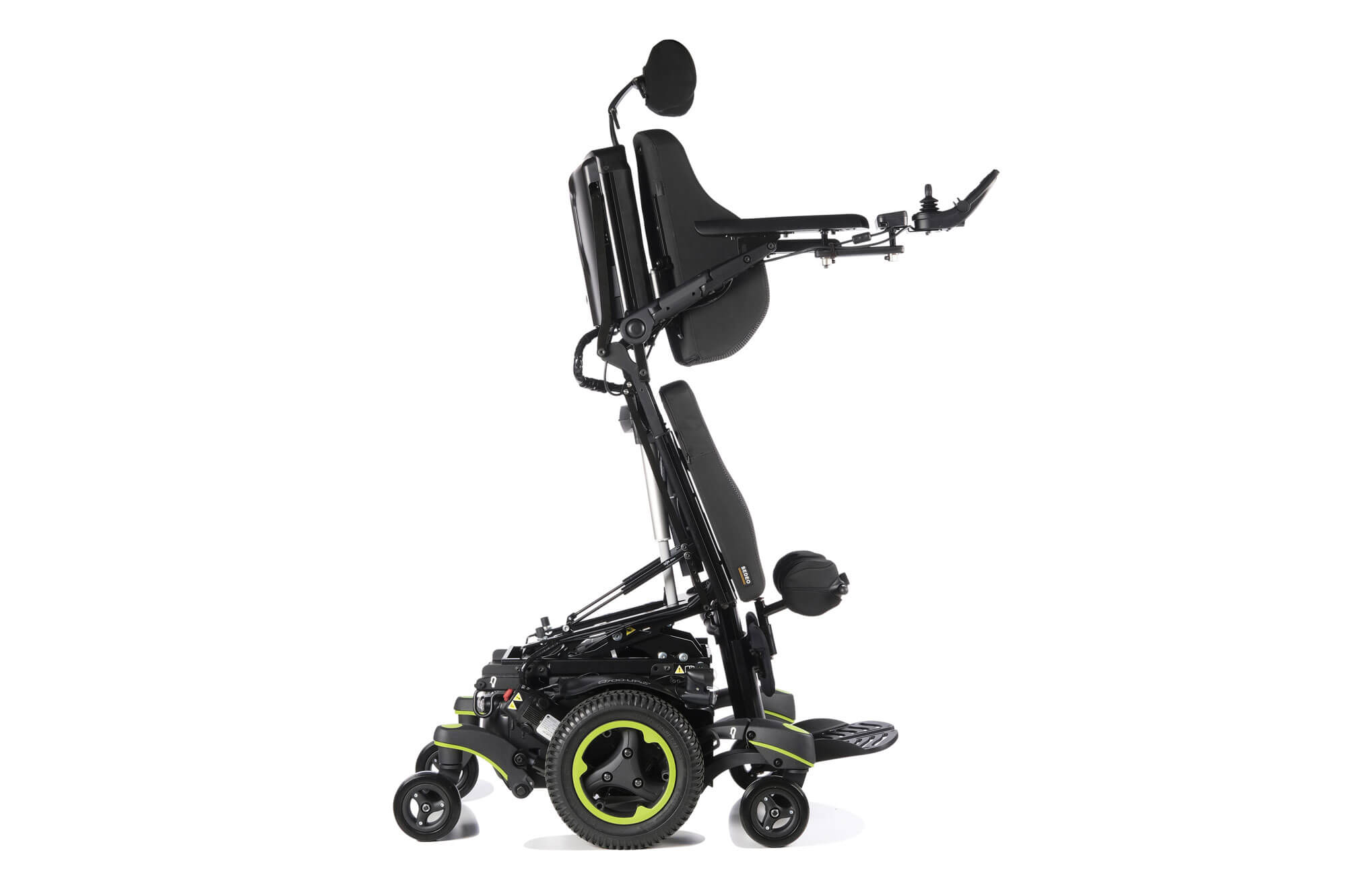

QUICKIE Q700-UP M

Combining the Q700 M’s high-performance mid-wheel drive base and a biomechanical, intelligent seating system with the health and social benefits of standing.

REQUEST A QUOTE

  • Mid wheel drive

  • Power Seating

  • Memory Seating

Specifications

Dimensions
Width:622 – 660 mm
Length:1070 – 1130 mm
Seat Width:380 – 560 mm
Seat Depth:400 – 540 mm
Seat Tilt:0 – 22°
Lower leg length:340 – 520 mm (power centre mount)
Backrest Angle:80 – 175°
Back Recline:175° (power recline)
Armrest Height:180 – 370 mm
Turning Radius:560 mm
Castor Wheel:6″
Drive Wheel:14″
Colours:Black (7 Colour Accents)
Performance/Weights
Max. Range:40 km (with 80 Ah batteries)
Speed:6 & 8 kph (standard), 10 & 12.5 kph (optional)
Batteries:60 Ah, 80 Ah (optional)
Maximum Safe Slope:6°
Max Kerb Climb:75 mm
Light And Indicators:Yes
Electronics:R-Net Controller
Total Weight:160 kg (inc. 60 Ah batteries)
Maximum User Weight:120 kg
Transportation
Crash Tested?This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19

Standing Wheelchair Benefit.pdf
