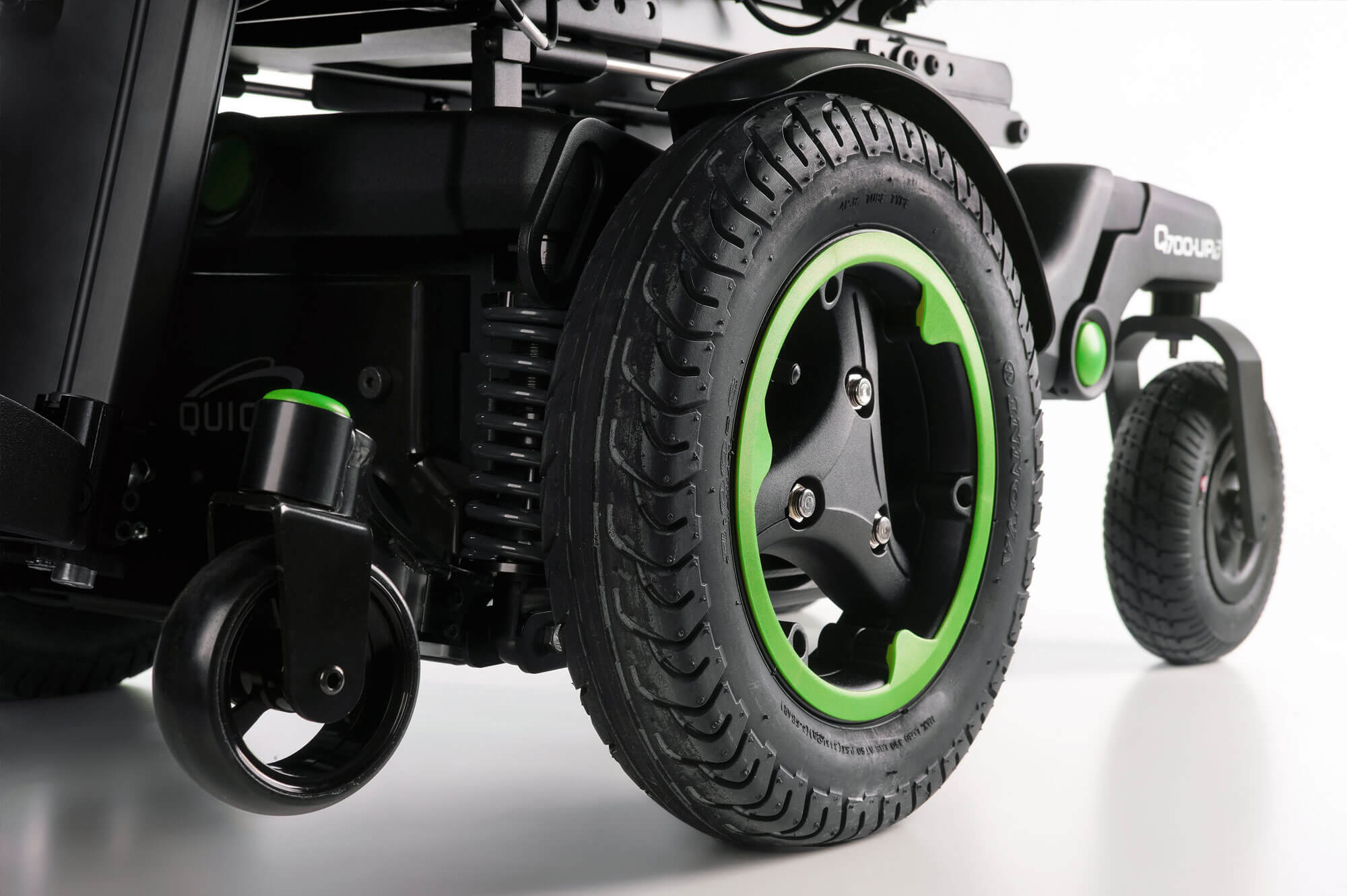

QUICKIE Q700-UP F

Combining the Q700 F’s high-performance front-wheel drive base and biomechanical seating system with the health and social benefits of standing.

REQUEST A QUOTE

  • Front wheel drive

  • Power Seating

  • Memory Seating

Specifications

Dimensions
Width:640 mm
Length:1270 – 1320 mm
Seat Width:380 – 560 mm
Seat Depth:400 – 540 mm
Seat Tilt:0 – 22°
Lower leg length:320 – 420 mm (power centre mount)
Backrest Height:560 – 760mm
Backrest Angle:85° – 175°
Back Recline:175° (power recline)
Turning Radius:735 mm
Castor Wheel:9″
Drive Wheel:14″
Colours:Black (7 Colour Accents)
Performance/Weights
Max. Range:Max. 40 km (80 Ah batteries)
Speed:6 & 8 kph (standard), 10 & 12.5 kph (optional)
Batteries:60 Ah, 80 Ah (optional)
Maximum Safe Slope:6°
Max Kerb Climb:75 mm
Light And Indicators:Yes
Electronics:R-Net controller
Total Weight:from 133 kg (including 60 Ah batteries)
Maximum User Weight:120 kg
Transportation
Crash Tested?This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19

Standing Wheelchair Benefit.pdf
