Loading capacity:
225 kg (optional 300 kg)
Max. platform sizes:
Width: 900 mm
Length: 1300 mm
Speed:
0.06 – 0.1 m/s
Gradient:
0 – 47°

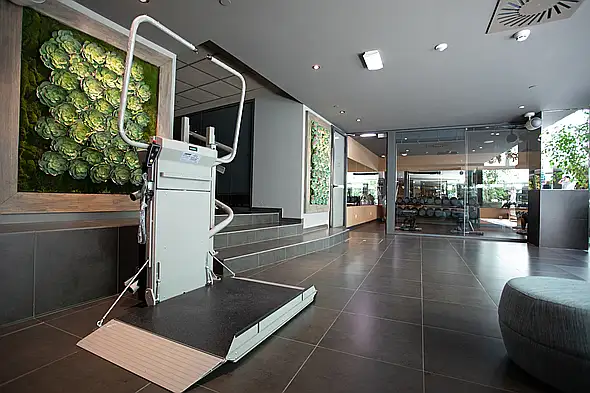

The Stratos platform lift for curved stairs is an elegant, reliable and easy to install stairlift. The compact design allows the unit to be installed in most staircases and results in a minimal obstruction for passers-by. Each platformlift perfectly blends into its surrounding thanks to the choice of different colours and materials for rails and the platform.
The upper rail tube is clean, smooth and completely closed. It can therefore serve perfectly as a handrail. This feature, combined with the option of large platform sizes, make the Stratos the preferred platform stairlift for commercial application in public buildings.
The 50mm tube and solid carriage allows for a safe and stable run

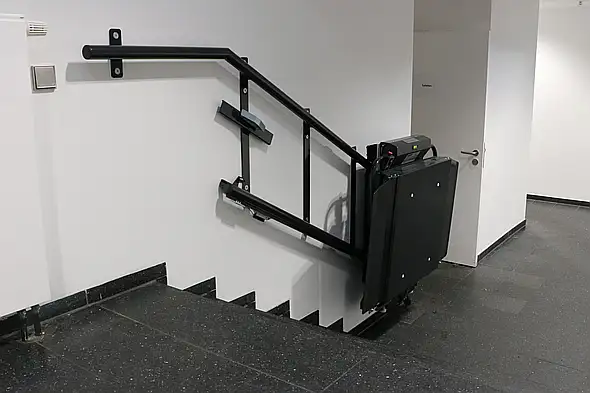

The upper tube is clean and serves as a comfortable handrail
Check out our installation video to understand the ease of installation
Loading capacity:
225 kg (optional 300 kg)
Max. platform sizes:
Width: 900 mm
Length: 1300 mm
Speed:
0.06 – 0.1 m/s
Gradient:
0 – 47°
Noise level:
Under 60 dB
Power supply:
1 x 230 V / 50-60 Hz
Surface treatment:
Powder coated RAL 9007 or 7035 (standard)
All RAL colours optional
Stainless steel optional
Options:
Folding seat
